Description
Specifications

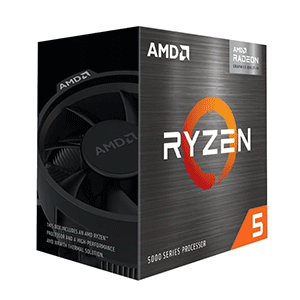

Model: AMD Ryzen 5 5500GT
General Specifications
Name: AMD Ryzen 5 5500GT
Family: Ryzen
Series: Ryzen 5000 Series
Form Factor: Desktops, Boxed Processor
Market Segment: Mainstream Desktop
Regional Availability: Global, China, NA, EMEA, APJ, LATAM
Former Codename: Cezanne
Processor Architecture: Zen 3
Number of CPU Cores: 6
Multithreading (SMT): Yes
Number of Threads: 12
Max. Boost Clock: Up to 4.4 GHz
Base Clock: 3.6 GHz
L1 Cache: 384 KB
L2 Cache: 3 MB
L3 Cache: 16 MB
Default TDP: 65W
AMD Configurable TDP (cTDP): 45?65W
Processor Technology for CPU Cores: TSMC 7nm FinFET
CPU Compute Die (CCD) Size: 180mm²
Package Die Count: 1
Unlocked for Overclocking: Yes
CPU Socket: AM4
Thermal Solution (PIB): AMD Wraith Stealth
Thermal Solution (MPK): AMD Wraith Stealth
Max. Operating Temperature: 95°C
OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
Connectivity
PCI Express® Version: PCIe® 3.0
NVMe Support: Boot, RAID0, RAID1, RAID10
System Memory
System Memory Type: DDR4
Memory Channels: 2
Max. Memory: 128 GB
System Memory Subtype: UDIMM
Max Memory Speed:
2x1R: DDR4-3200
2x2R: DDR4-3200
4x1R: DDR4-2933
4x2R: DDR4-2667
Graphics Capability
Graphics Model: Radeon Graphics
Graphics Core Count: 7
Graphics Frequency: 1900 MHz
