Description
Specifications
Product Type

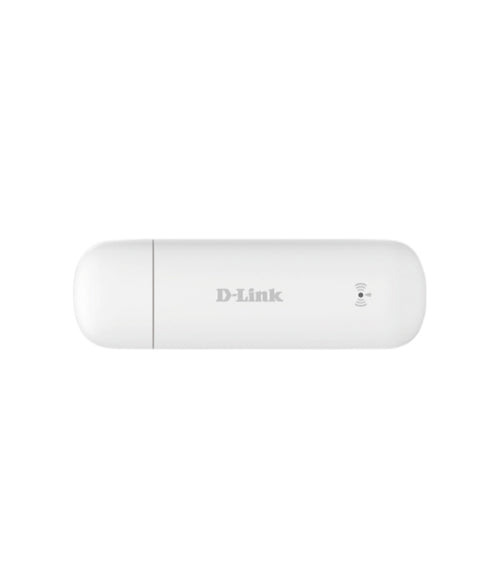

4G LTE USB Wingle
Device Interfaces
-
USB 2.0
-
SIM Slot
Radio Frequency Bands
LTE-FDD
- B1 / B3 / B7 / B8 / B20
LTE-TDD
- B38 / B40 / B41
UMTS / HSDPA / HSUPA / HSPA+
-
B1 / B8
-
900 / 2100 MHz
GSM
- B3 / B8
Cellular Access
LTE
-
3GPP Release 9 FDD-LTE Cat.4
-
Downlink: Up to 150Mbps
-
Uplink: Up to 50Mbps
DC-HSPA+
-
Downlink: Up to 42Mbps
-
Uplink: Up to 11Mbps
Wi-Fi Access Point
-
802.11n: Up to 75Mbps
-
802.11g: Up to 54Mbps
-
802.11b: Up to 11Mbps
Wireless Security
-
WPA2-PSK Auto (TKIP/AES)
-
WPA-PSK Auto (TKIP/AES)
-
WEP (64/128-bit)
-
MAC Filter
Connection Manager Software Requirements
-
Operating Systems: Windows 8 / 7 / Vista / XP
-
Mac OS X 10.5 or higher
-
Ubuntu Linux 10.04 or higher
-
RAM: 128MB or greater
-
Available Disk Space: 50MB
Functionality
Antenna
-
Internal LTE Main Antenna
-
Internal TDS Antenna
-
Internal Wi-Fi Antenna
LED Indicators
-
3-in-1 LED Indicator
-
Power LED
-
Wi-Fi LED
-
Network LED
Plug and Play
-
Built-in Drivers and Software
-
No CD-ROM Required
Connection Software Features
-
Web GUI
-
Phonebook
-
SMS
-
Wizard
-
APN
-
Traffic Display and Statistics
Wi-Fi Features
-
Auto Channel Selection
-
Supports Up to 8 Connected Clients
Advanced Features
-
3G Fallback
-
IPv6 Support
Physical Specifications
Dimensions (L x W x D)
71 x 22 x 4.2mm
Weight
Less than 30g
Working Temperature
-10°C to 40°C
Storage Temperature
-40°C to 70°C
Power
5V DC
