Description
Technical Specifications
Number of Screens: 1
Screen Size Class: 27inch
Viewable Screen Size: 27inch
Screen Mode: Full HD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 5 ms
Response Time Details
5ms GTG (Fast)
8ms GTG
Response Time Details: 8ms GTG
Aspect Ratio: 16:9
Pixel Pitch: 0.3114 mm x 0.3114 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type: Panel Mount
Backlight Technology: LED Edgelight System
HDCP Supported: Yes
Tilt Angle: -5° to 21°
Horizontal Frequency: 30 kHz to 83 kHz - VGA
Vertical Frequency
48 Hz to 100 Hz - HDMI 1.4
56 Hz to 76 Hz - VGA
Stand Adjustments: Tilt
Stand Included: Yes
Glass Hardness: 3H
Video
Maximum Resolution: 1920 x 1080
Standard Refresh Rate: 100 Hz
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,000:1
Brightness: 250 cd/m2
Colour Gamut: 72% NTSC (CIE 1931)
Maximum Preset Resolution: 1920 x 1080 at 100Hz
Pixel Per Inch (PPI) 81

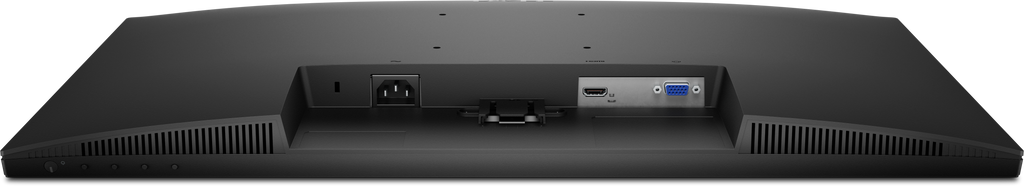

Interfaces/Ports
Connectivity
Video port
1 HDMI port (HDCP 1.4) (Supports up to FHD 1920 x 1080, 100 Hz)
1 VGA port
Environmental Conditions
Operating Temperature Range: 32°F (0°C) to 104°F (40°C)
Non-operating Temperature Range: -4°F (-20°C) to 140°F (60°C)
Operating Humidity Range: 10% to 80% (Non-condensing)
Non-operating Humidity Range: 5% to 90% (Non-condensing)
Maximum Operating Altitude: 4998.72 m
Maximum Non-operating Altitude: 12192 m
Power Description
Input Voltage Range: 100V AC to 240V AC
Operating Power Consumption: 16.30 W
Standby Power Consumption: 0.3 W
Off-Mode Power Consumption: 0.3 W
Frequency
60 Hz
50 Hz
Maximum Power Consumption: 28 W
Voltage Current: 1.50 A
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Height 361.86 mm
Width 611.10 mm
Depth 49.22 mm
Height with Stand 453.71 mm
Width with Stand 611.10 mm
Depth with Stand 199.87 mm
Bezel Width (Top) 6.60 mm
Bezel Width (Bottom) 13.37 mm
Bezel Width (Left) 6.61 mm
Bezel Width (Right) 6.61 mm
Weight (Approximate) 3.56 kg
Stand Height 190.66 mm
Stand Width 290.07 mm
Stand Depth 199.87 mm
Weight with Stand (Approximate) 4.40 kg
Miscellaneous
Package Contents
Monitor
Stand
QR card
Safety Information
Energy Star: Yes
Country of Origin: China/Thailand
Cable Type Included
Power cable: 1 x HDMI cable - 1.80 m
Energy Efficiency Certification: ENERGY STAR 8.0Energy Efficiency Compliance: Energy-related Products Directive Lot 5 (ErP Lot 5)
Environmental Compliance: Restriction of Hazardous Substances (RoHS
