Specifications
Projection Technology:
RGB liquid crystal shutter projection system (3LCD)
Brightness:
White Light Output (Normal/Eco):
3,600 lm / 2,100 lm
Colour Light Output:
3,600 lm
Light Output (Center)*2:
3,700 lm

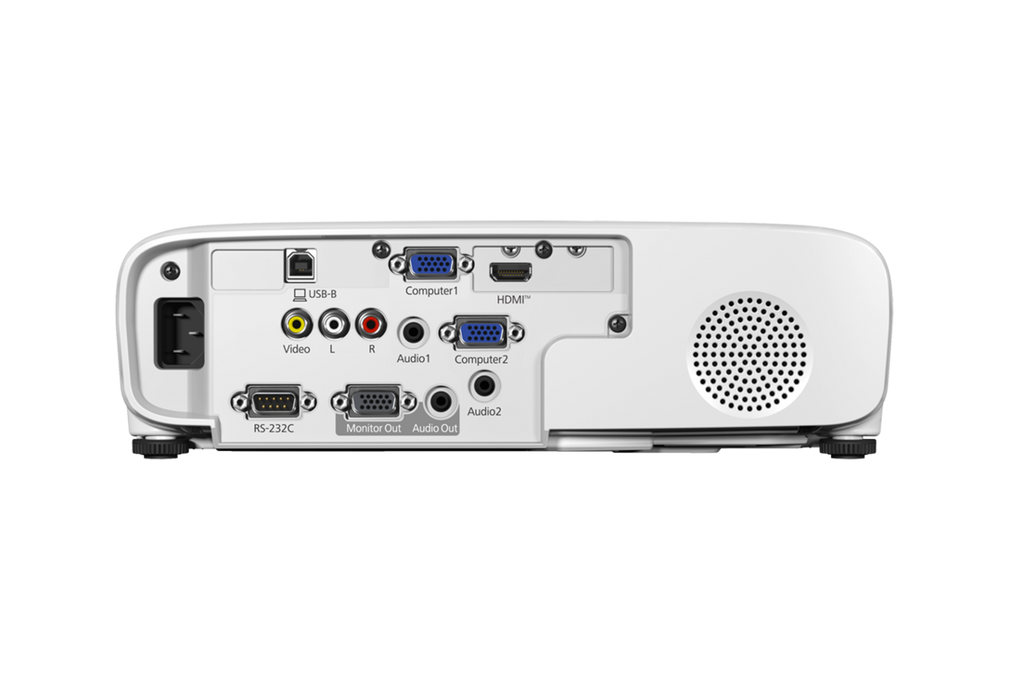

Connectivity:
Network:
N/A
Analog Input:
D-Sub 15pin : 2 (RGB, RGB Video)
RCA : 1
Digital Input:
HDMI Type A : 1 (HDCP 1.4)
Analog Output:
D-Sub 15pin : 1 (RGB, RGB Video)
Audio Input:
Stereo Mini : 2
2RCA (White x 1, Red x 1): 1
Audio Output:
Stereo Mini: 1
Control I/O:
RS-232C : 1 (D-Sub 9pin)
USB Input:
USB Type B : 1 (For Firmware Update, Copy OSD Settings)
Contrast Ratio:
15,000:1
Screen Size (Projected Distance):
Zoom : Wide:
30? ? 350? [0.87 ? 10.34 m]
Zoom : Tele:
15? ? 175? [0.87 - 10.34 m]
Geometric Correction:
Vertical/Horizontal Keystone:
±30° / ±30°
Operating Temperature:
Low Altitude (0 - 2,286m/7,500ft): 5 - 40 °C <41 - 104 °F>
High Altitude (Over 2,286m/7,500ft): 5 - 35 °C <41 - 95°F>
20% - 80% Humidity, No Condensation
Operating Altitude:
Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)
Start-Up Period:
Less than 7 seconds (Epson Logo); Warm-up Period: 30 seconds
Cool Down Period:
Instant Off
Internal Speaker(s):
Sound Output:
Monaural 5W x 1
Weight:
Approx. 2.7kg
Air Filter:
Maintenance Cycle:
6,000 hours (Normal) / 12,000 hours (Eco)
Fan Noise:
Fan Noise (Normal / Eco):
37dB / 28dB
Power Consumption (220-240V):
Lamp (Normal / Extended):
Normal : 332 W
Extended : 231 W
Standby (Normal / Eco) :
N/A / 0.3 W
Direct Power On / Off:
Yes
Dimension Excluding Feet:
Dimension Excluding Feet (W x D x H):
302 x 249 x 87 mm
Power Supply:
Power Supply Voltage:
100 - 240 V AC ±10%, 50/60 Hz
Specifications of Main Parts:
LCD:
Size : 0.55? (C2 Fine)
Driving Method : Poly-silicon TFT active matrix
Pixel Number : 786,432 dots (1024 x 768) x 3
Native Resolution : XGA
Aspect Ratio : 4:3
Pixel Arrangement : Cross stripe
Light Source:
Lamp Type : 210 W UHE
Life (Normal / Eco) 6,000 hours / 12,000 hours
Projection Lens:
Type : No Optical Zoom / Focus (Manual)
F-Number : 1.44
Focal Length : 16.7 mm
Zoom Ratio : 1.0 - 2.0 (Digital Zoom)
Throw Ratio : 1.44 ? 2.88
