Description
Technical Specifications
Printing:
Printing Technology: Micropiezo Printhead
Nozzle Configuration:
180 x 1 nozzles Black
180 x 1 per colour (Cyan, Magenta, Yellow, Light Cyan, Light Magenta)
Print Direction:
Bi-directional printing
Maximum Resolution: 5,760 x 1,440 dpi (with Variable-Sized Droplet Technology)
Minimum Ink Droplet Volume: 1.5 pl
Print Speed*1:
Draft Text - Memo, A4 (Black#1 / Colour#2) : Up to 22 ppm / 22 ppm
ISO 24734, A4 (Black / Colour) : Simplex: Up to 8.0 ipm / 8.0 ipm
First Page Out Time (Black / Colour) : Approx. 14 sec / 14 sec
Photo Default - 10 x 15 cm / 4 x 6"*2 #3 (Border / Borderless) : Approx. 25 sec / 25 sec
Photo Default - A4*2 (Border / Borderless) : Approx. 60 sec / 64 sec
Printer Language: ESC/P-R, ESC/P Raster

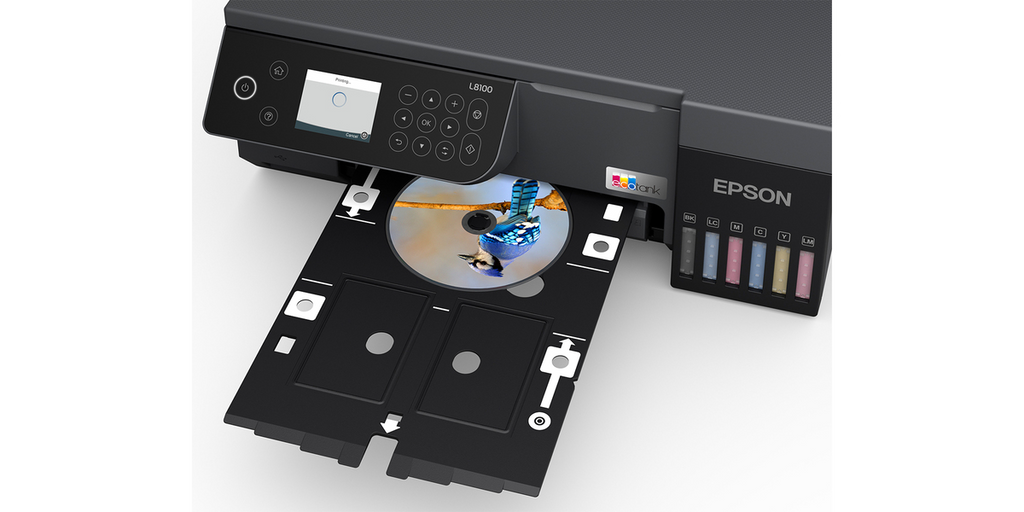

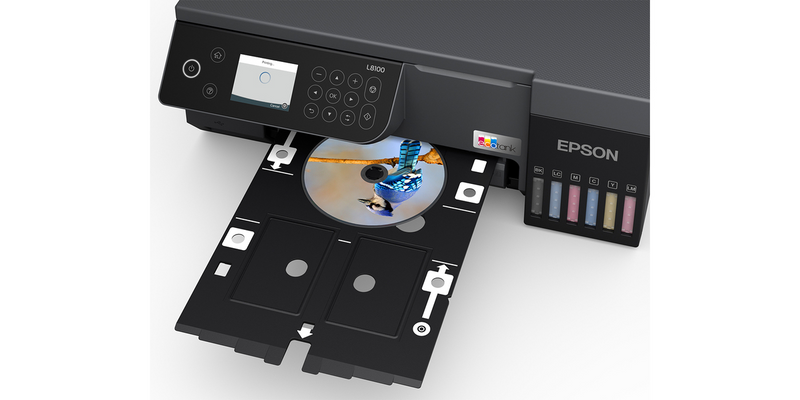

CD/DVD Printing: Yes

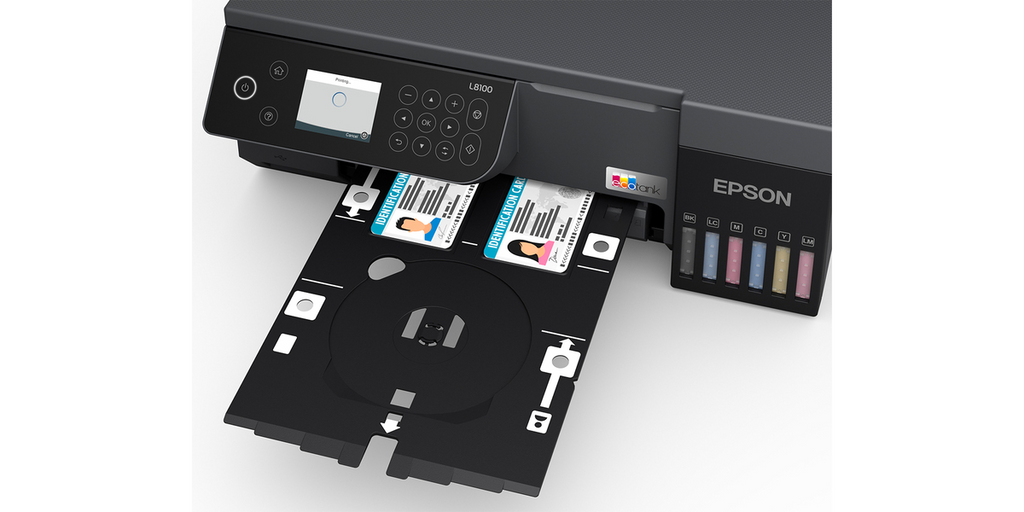

PVC/ID card printing: Yes
Automatic 2-sided Printing: No
Printer Software:
Software Solutions Compatibility:
Epson Photo+
Epson ScanSmart
Epson Device Admin
Epson Remote Services
Inteface
USB: USB 2.0
Network: Wi-Fi IEEE 802.11b/g/n, Wi-Fi Direct
Network Protocol: TCP/IPv4, TCP/IPv6
Network Management Protocols: SNMP, HTTP, DHCP, APIPA, DDNS, mDNS, SLP, WSD, LLTD
Noise Level:
PC Printing / PGPP: Sound Power (Black / Colour) 4.9 / 5.0 B(A),
Best Photo: Sound Pressure (Black / Colour) 37 / 37 dB(A)
PC Printing / Plain Paper Default*4:
Sound Power (Black / Colour) 6.2 / 6.0 B(A),
Sound Pressure (Black / Colour) 50 / 47 dB(A)
Copying:
Copy Speed: ISO 29183, A4 (Black / Colour), Flatbed : Simplex: Up to 7.5 ipm / 7.5 ipm
Copy Quality: Draft / Standard / High
Maximum Copies from Standalone: 99 copies
Maximum Copy Resolution: 600 x 600 dpi
Maximum Copy Size: A4, LTR
Scanning:
Scanner Type: Flatbed colour image scanner
Sensor Type: CIS
Optical Resolution: 1,200 x 4,800 dpi
Maximum Scan Area: 216 x 297 mm (8.5 x 11.7?)
Scanner Bit Depth (Colour): Colour : 48-bit input, 24-bit output
Grayscale : 16-bit input, 8-bit output
Black & White : 16-bit input, 1-bit output
Scan Speed (Flatbed):
Monochrome (200 dpi): Up to 6 sec
Colour (200 dpi): Up to 11 sec
Paper Handling:
Paper Feed Method: Friction feed
Number of Paper Trays: 1
Paper Hold Capacity: Input Capacity:
100 sheets of A4 Plain Paper (80g/m2)
20 sheets of Premium Glossy Photo Paper
Output Capacity: 100 sheets of A4 Plain Paper (80g/m2)
30 sheets of Premium Glossy Photo Paper
Support Paper Size: A4, A5, A6, B5, B6, Letter, Legal, Indian-Legal, 100 x 148 mm, 3.5 x 5", 4 x 6", 5 x 7", 5 x 8", 8 x 10", 8.5 x 13", 16:9 Wide, 16K, Envelopes: #10, DL, C6
Maximum Paper Size: 215.9 x 2000 mm (8.5 x 78.74")
Support Paper Weight: Plain Paper: 64 90 g/m2
Photo Paper: 102 ? 300 g/m2
Print Margin: 0 mm top, left, right, bottom via custom settings in printer driver
Supported OS and Applications:
Operating System Compatibility:
Windows 7 / 8 / 8.1 / 10 / 11
Windows Server 2008 / 2012 / 2016 / 2019 / 2022
Mac OS X 10.9.5 or later, macOS 11 or later
Electrical Specifications:
Rated Voltage: AC 220-240 V
Rated Frequency: 50 - 60 Hz
Power Consumption:
Operating : 19 W
Standby : 4.8 W
Sleep : 0.7 W
Power Off : 0.2 W
USB Host Function:
Type of Devices: Memory Devices
Function: USB Host (Scan to Memory Device / Storage function)
Direct Print Paper Size: A4, A5, A6, B5, B6, Letter, Legal, 3.5 x 5?, 4 x 6?, 5 x 7?, 8.5 x 13?, 16K, Envelopes: #10, DL, C6
Supported Formats (Direct Print): JPEG
Consumables
Black Ink Bottle
Page Yield: 3,600 pages
Order Code: 057
Cyan Ink Bottle:
Page Yield: 7,200 (Composite Yield)
Photo Page Yield: 2,100 (Composite Yield)
Order Code: 057
Magenta Ink Bottle:
Page Yield: 7,200 (Composite Yield)
Photo Page Yield: 2,100 (Composite Yield)
Order Code: 057
Yellow Ink Bottle:
Page Yield: 7,200 (Composite Yield)
Photo Page Yield: 2,100 (Composite Yield)Order Code: 057
Light Cyan Ink Bottle:
Page Yield: 7,200 (Composite Yield)
Photo Page Yield: 2,100 (Composite Yield)
Order Code: 057
Light Magenta Ink Bottle :
Page Yield: 7,200 (Composite Yield)
Photo Page Yield: 2,100 (Composite Yield)
Order Code: 057
Pickup Roller: C12C937771
Maintenance Box: C12C934591
Control Panel
LCD Screen:
2.4? Colour LCD Screen
Mobile and Cloud Printing
Epson Connect: Epson Smart Panel, Epson Email Print, Remote Print Driver, Scan to Cloud
Driverless Solutions: Apple AirPrint, Mopria Print Service, Chrome OS
Printer Type:
Printer Type: Print, Scan, Copy
