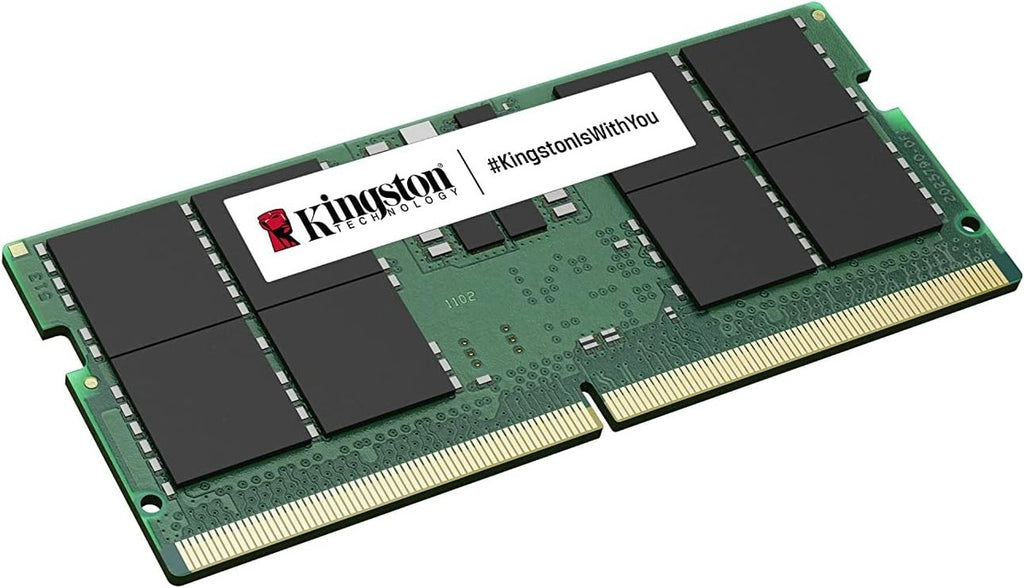

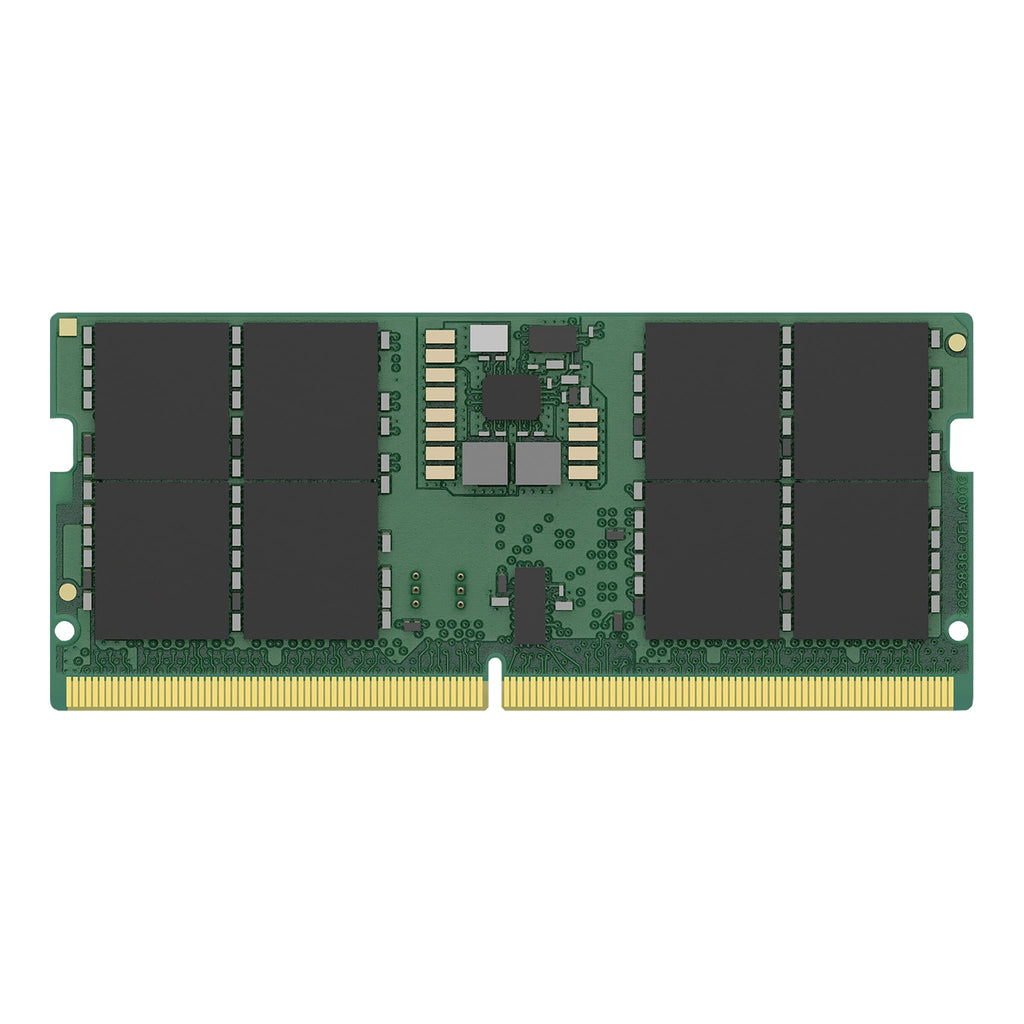

Kingston 32GB DDR5 6400 SODIMM KVR64V52BD8-32

The KVR64V52BD8-32 is a 4G x64-bit (32GB) DDR5-6400 CL52 Clocked Small Outline DIMMs (CSODIMMs), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components and one Clock Driver (CKD). The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 262-pin CSODIMM uses gold contact fingers.

Technical Specifications

• Model Number: KVR64V52BD8-32

• Capacity: 32GB

• Memory Type: DDR5

• Form Factor: SODIMM

• Speed: 6400MHz

• Module Configuration: 1 x 32GB

• Voltage: 1.1V

• Error Checking: Non-ECC

• Buffered / Registered: Unbuffered

• Pin Count: 262-pin

• Compatibility: DDR5-enabled laptops and small-form-factor systems
