Description
Free:
Microsoft 365 Basic + Office Home 2024

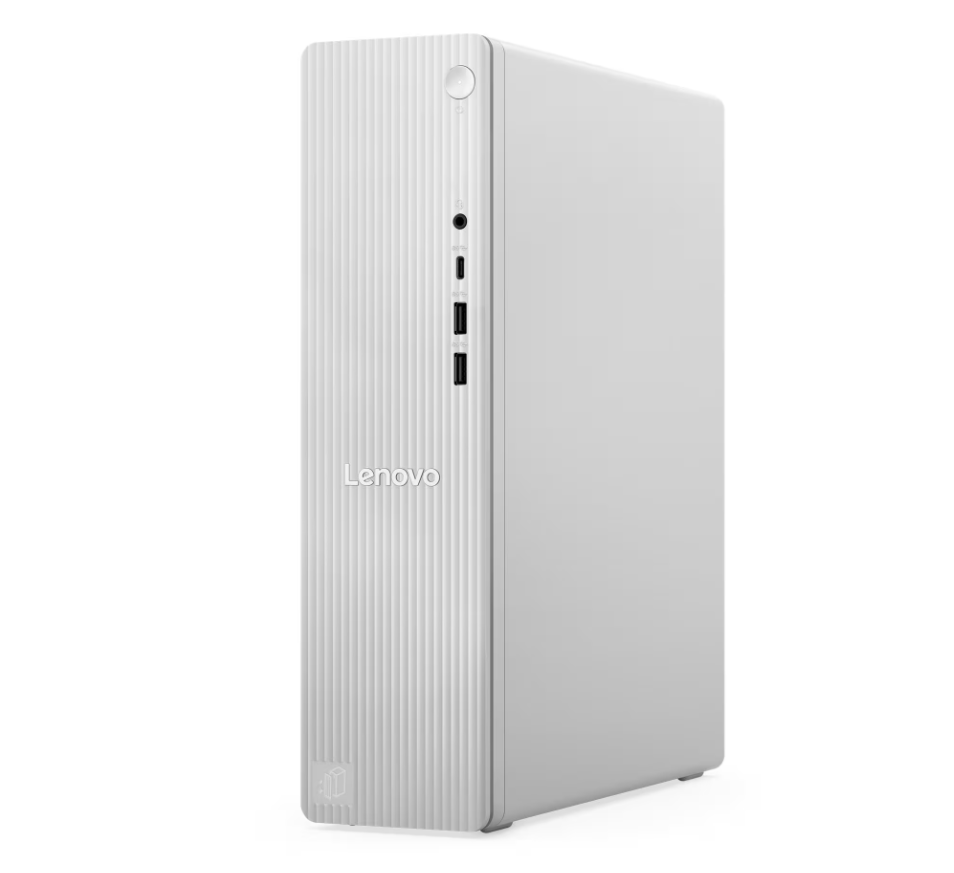

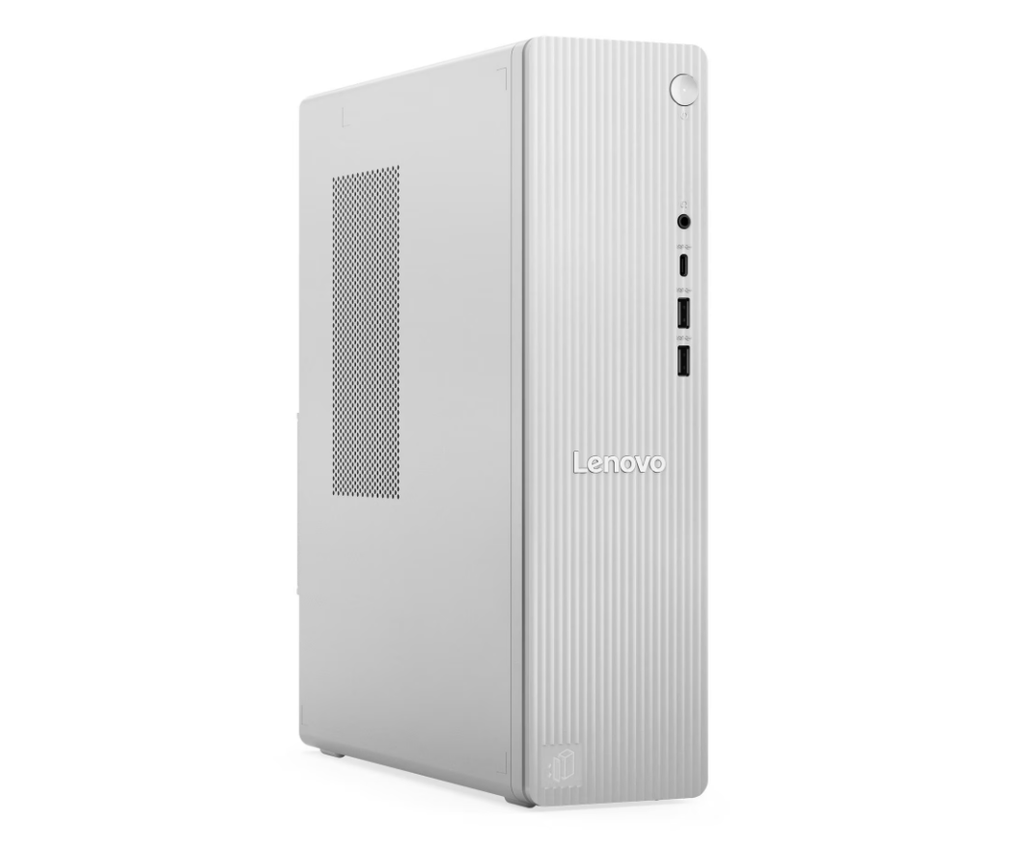

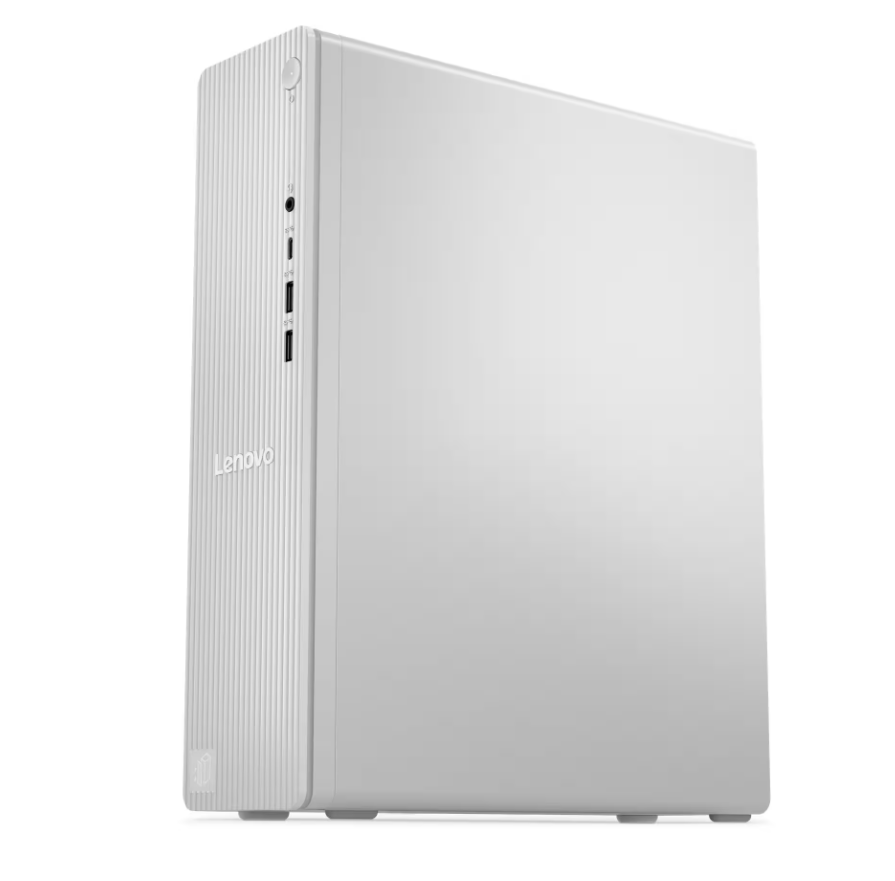

Specifications
PERFORMANCE
Processor: Intel Core Ultra 5 225, 10C (6P + 4E) / 10T, Max Turbo up to 4.9GHz, 20MB Intel® Smart Cache
AI PC Category: -
NPU: -
Graphics: Integrated Intel® Graphics
Chipset: Intel® B860 Chipset
Memory: 1x 16GB UDIMM DDR5-5600
Memory Slots: Two DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 32GB DDR5-5600
Storage: 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe®
Max Storage Support: Up to three drives, 1x 3.5" HDD + 2x M.2 SSD ? 3.5" HDD up to 2TB ? M.2 SSD up to 1TB each
Card Reader: No Card Reader
Optical: None
Audio Chip: High Definition (HD) Audio, Realtek® ALC623-CG codec
- 24-bit DAC supports 44.1K/48K/96K sample rate, 2 channel DAC supports 16/20/24-bit PCM format for independent two stereo channel or 2.1 audio playback
- 24-bit ADC supports 44.1K/48K/96K sample rate, 2 channel ADC supports 16/20/24-bit PCM format for independent two stereo channel audio inputs
Speakers: No speakers
Power Supply: 260W 90%
DESIGN
Keyboard: USB Calliope Keyboard, Cloud Grey, English
Mouse: USB Calliope Mouse, Cloud Grey
Expansion Slots: Three M.2 slots (one for WLAN, two for SSD)
- -
-
Case Color: Cloud Grey
System Fan: None
- -
-
Stand: Vertical stand
Pen: Pen Not Supported
Form Factor: SFF (8.2L)
Dimensions (WxDxH): 89 x 291.4 x 339.5 mm (3.5 x 11.5 x 13.4 inches)
Weight: Around 4.52 kg (9.96 lbs)
CONNECTIVITY
WLAN + Bluetooth: Wi-Fi® 7, 802.11be 2x2 + BT5.4
Ethernet: WWAN Not Supported
WWAN: Integrated 100/1000M

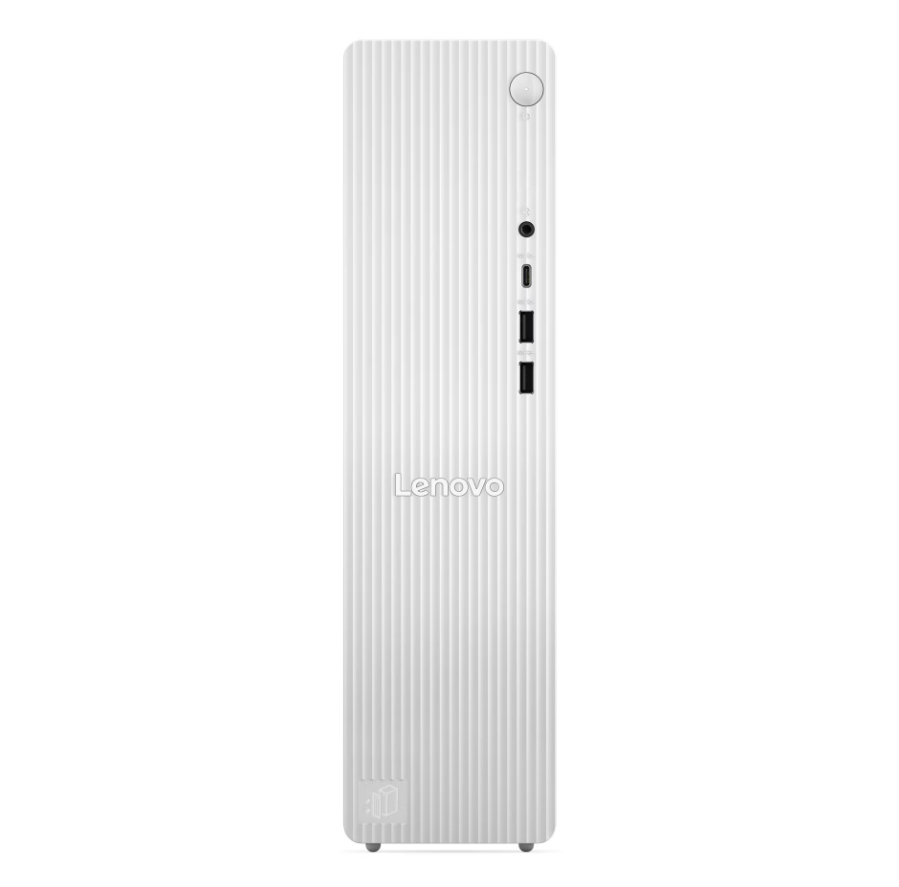

Front Ports:
- 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1)
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x headphone / microphone combo jack (3.5mm)
-

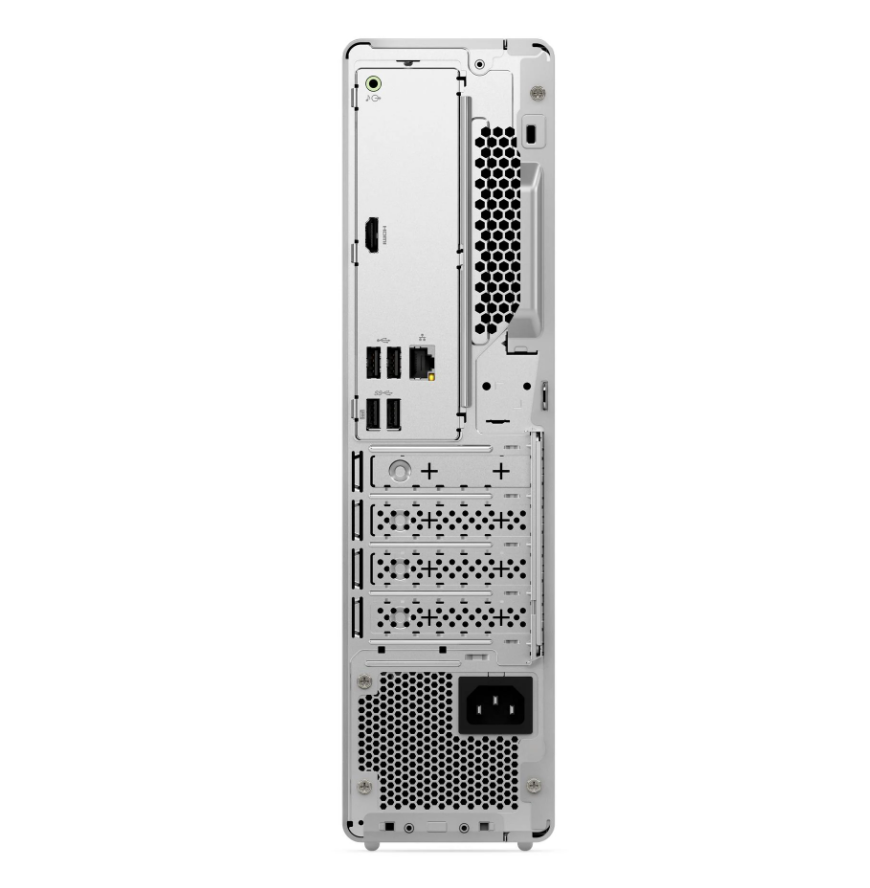

Rear Ports:
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On
- 2x USB-A (Hi-Speed USB / USB 2.0)
- 1x HDMI® 2.1 TMDS
- 1x Ethernet (RJ-45)
- 1x audio-out (3.5mm)
- 1x power connector
SECURITY & PRIVACY
Security Chip: Firmware TPM 2.0 integrated in chipset
SERVICE
Warranty: 3Y Premium Care - Idea DT (ESS)
CERTIFICATIONS
Green Certifications: ErP Lot 3
- RoHS compliant
SOFTWARE
Operating System: Windows® 11 Home Single Language, English
Bundled Software: Microsoft® 365 Basic + Office Home 2024
ACCESSORIES
Bundled Accessories: Vertical Stand

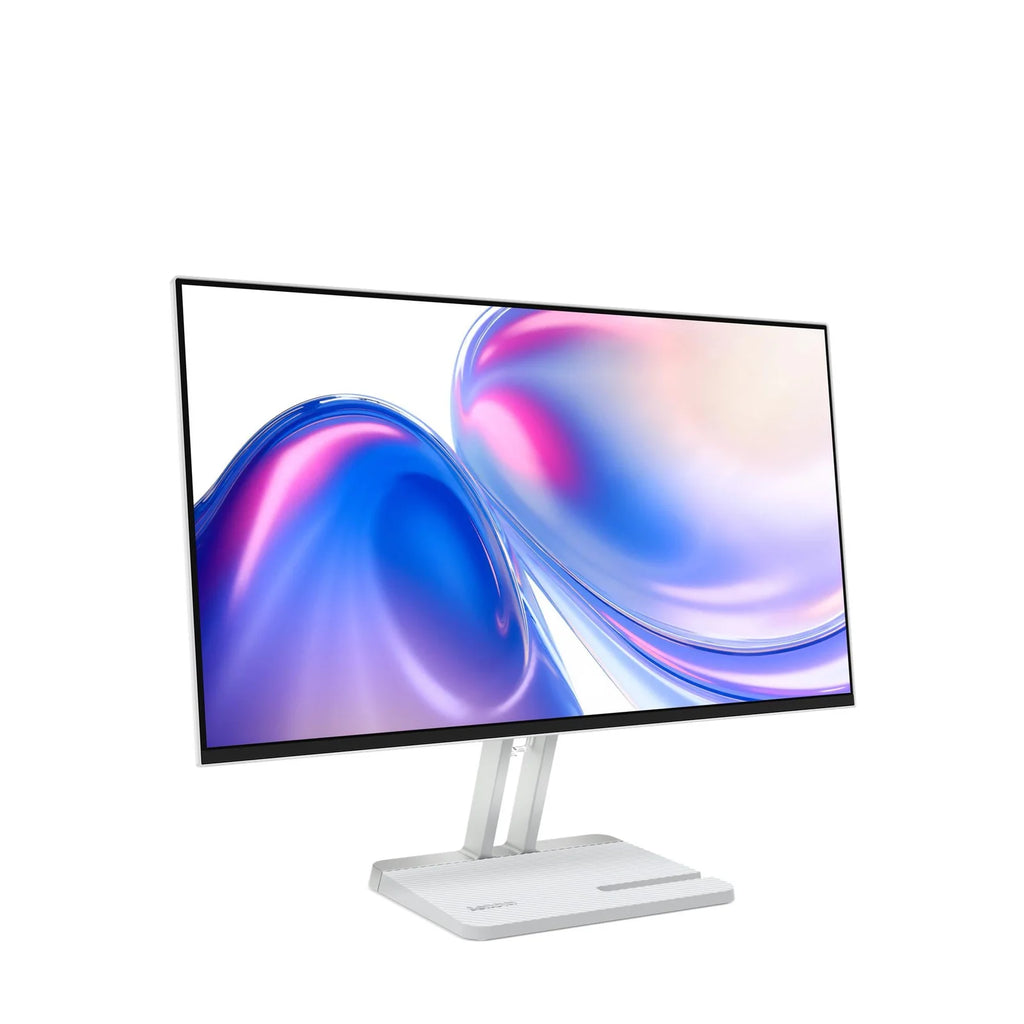

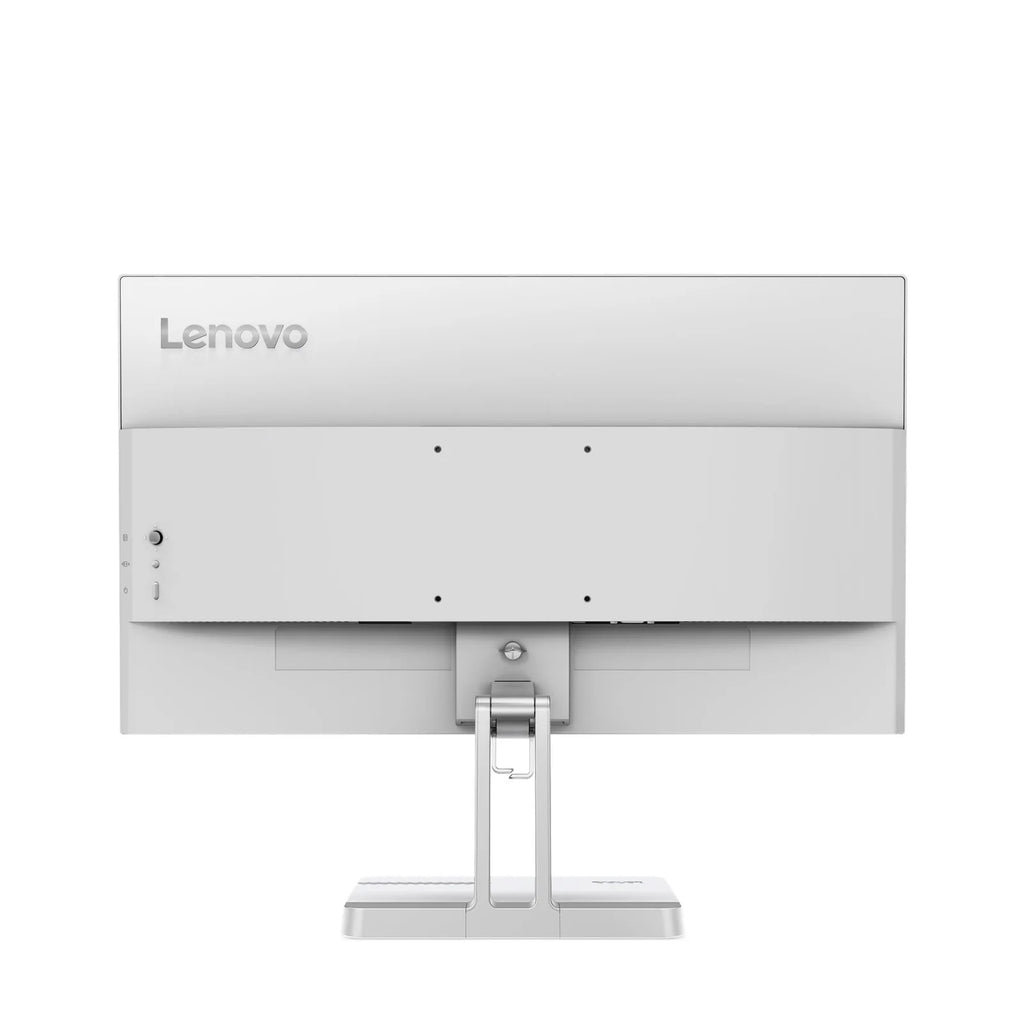

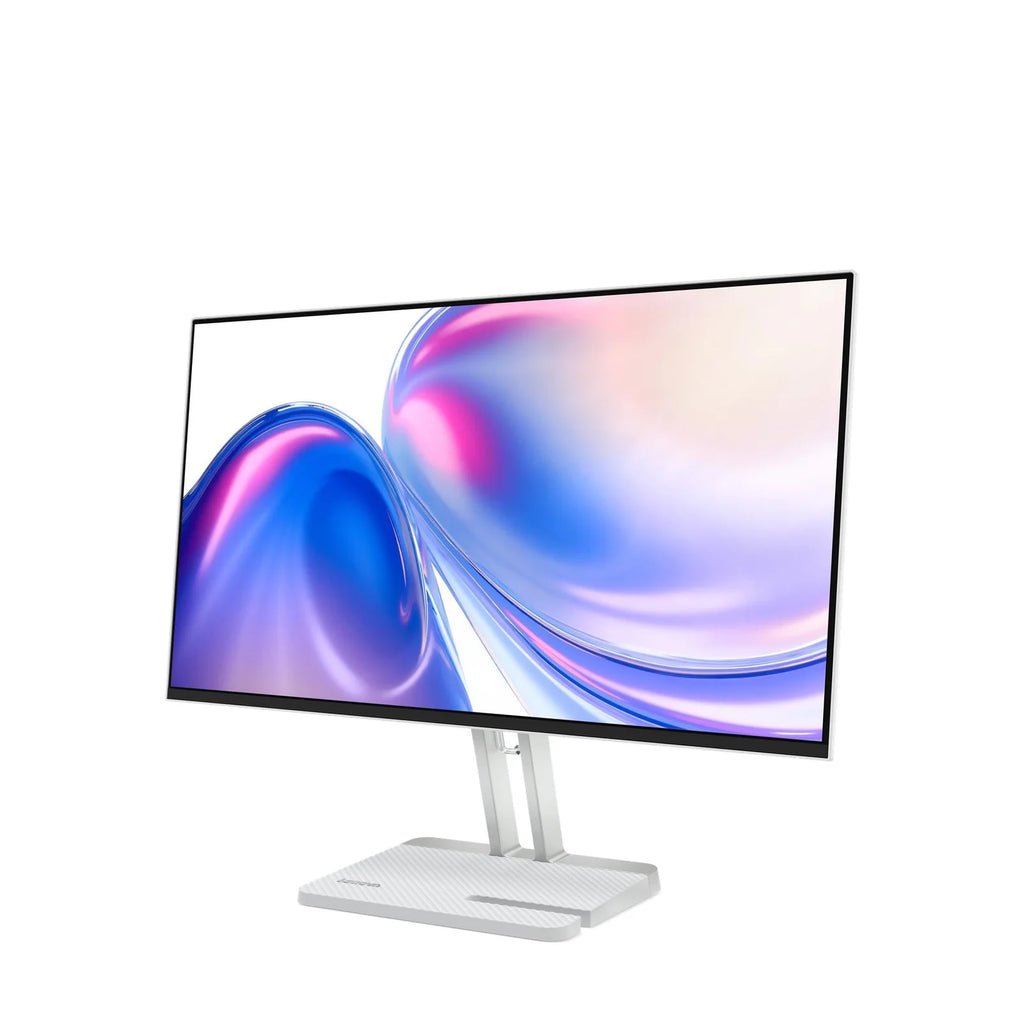

Specification of the Monitor
PERFORMANCE
Display Size 23.8"
View Area 527x296.5 mm
Panel In-Plane Switching
Backlight WLED
Aspect Ratio 16:09:00
Resolution 1920x1080
Pixel Pitch 0.275x0.275 mm
Dot / Pixel Per Inch 93 dpi
View Angle (H / V) 178° / 178°
Response Time 1ms (MPRT) / 4ms (Extreme Mode) (G to G) / 6ms (Normal Mode) (G to G)
Color Support 16.7 Million
Refresh Rate 144Hz
Brightness 250 cd/m²
Contrast Ratio 1500:01:00
Color Gamut 99% sRGB (CIE 1931)
Screen Surface Treatment Anti-glare
Curvature None
Camera None
Microphone None
Speakers 3Wx2
Power Consumption (Typical / Maximum) 14.7W / 35W
Power Adapter Integrated
Touchscreen None
Smart System None
DESIGN
Stand Tilt
Case Color Cloud Grey
Side Bezel Width 2 mm
Mounting Supports VESA mount 100 x 100 mm
ThinkCentre M Series Support Tiny Support
Pen None
Dimensions Monitor with stand | 539.4 x 182.9 x 433.8 mm (21.24 x 7.20 x 17.08 inches)
Head Only | 539.4 x 41.0 x 315.2 mm (21.24 x 1.61 x 12.41 inches)
Packaging Dimensions (WxDxH) 618.0 x 118.0 x 398.0 mm (24.33 x 4.65 x 15.67 inches)
Weight Monitor With Stand | 3.8 kg (8.4 lbs)
Monitor Head Only | 3.0 kg (6.6 lbs)
Packaging Weight 5.6 kg (12.3 lbs)
CONNECTIVITY
USB Port None
Video Connector 1x HDMI® 1.4, 1x VGA
Network Connectivity None
