Description
Free:
Lenovo Gaming Bag
Specifications

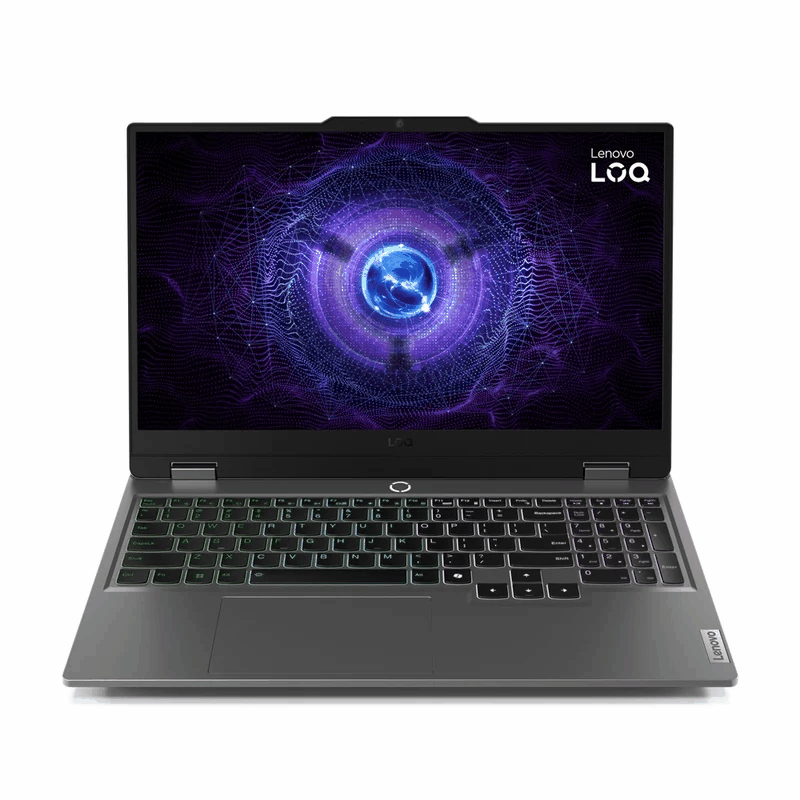

Model Lenovo LOQ 15IRX9
Part Number 83DV01L1PH
AI PC Category AI-Powered Gaming PC
PERFORMANCE
Processor Intel Core i7-13650HX 14 Cores (6P + 8E) / 20 Threads P-core up to 4.9GHz E-core up to 3.6GHz 24MB Intel® Smart Cache
Graphics NVIDIA GeForce RTX 4050 6GB GDDR6 Boost Clock: 2370MHz TGP: 105W 194 AI TOPS
Chipset Intel® HM770 Chipset
Memory 1 × 8GB SODIMM DDR5-4800
Memory Slots Two DDR5 SODIMM slots Dual-channel capable
Maximum Memory Up to 32GB DDR5-4800
Storage 512GB M.2 2242 PCIe® 4.0 x4 NVMe® SSD
Storage Slots Two M.2 2280 PCIe® 4.0 x4 slots
Maximum Storage Support Up to two drives, 2 × M.2 SSD M.2 2242 SSD up to 1TB each
Optical Drive None
Card Reader No card reader
Audio Chip High Definition (HD) Audio Realtek® ALC3287 codec
Speakers Stereo speakers, 2W × 2 Optimized with Nahimic Audio
Microphone 2-array microphones
Camera HD 720p with E-shutter
Battery 60Wh
Power Adapter 170W Slim Tip (3-pin)
Special Features AI Chip: LA1
DESIGN
Display 15.6-inch FHD IPS display 1920 × 1080 resolution 300 nits brightness Anti-glare 100% sRGB 144Hz refresh rate G-SYNC®
Touchscreen No touchscreen
Screen-to-Body Ratio 88% AAR (Active Area Ratio)
Color Calibration No color calibration
Pen Support Pen not supported
Keyboard White backlit keyboard English layout
Touchpad Buttonless Mylar® surface multi-touch touchpad Supports Precision TouchPad (PTP) 75 × 120mm (2.95 × 4.72 inches)
Dimensions (W × D × H) 359.86 × 258.7 × 21.9?23.9mm 14.17 × 10.19 × 0.86?0.94 inches
Weight Starting at 2.38kg (5.25 lbs)
Case Color Luna Grey with white backlit keyboard
Case Material PC-ABS top cover PC-ABS bottom cover
Surface Treatment Painting
SOFTWARE
Operating System Windows® 11 Home Single Language, English
Bundled Software Office Trial
CONNECTIVITY
WLAN + Bluetooth Wi-Fi® 6, 802.11ax 2 × 2 Bluetooth® 5.2
WWAN WWAN not supported
Ethernet 100/1000M (RJ-45)
Standard Ports 3 × USB-A (USB 5Gbps / USB 3.2 Gen 1) 1 × USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65?100W and DisplayPort 1.4 1 × HDMI® 2.1, up to 8K/60Hz 1 × Headphone/microphone combo jack (3.5mm) 1 × Ethernet (RJ-45) 1 × Slim Tip power connector
Docking Various docking solutions supported via USB-C® Compatible docking solutions available for LOQ 15IRX9
SECURITY & PRIVACY
Security Chip Firmware TPM 2.0 enabled
Fingerprint Reader No fingerprint reader
Other Security Features E-shutter
ACCESSORIES
Bundled Accessories None
Free Accessory Lenovo Gaming Bag
CERTIFICATIONS
Green Certifications ErP Lot 3 RoHS compliant
MIL-SPEC Test MIL-STD-810H military test passed
Other Certifications TÜV Rheinland® Low Blue Light (Software Solution)
