Description
Technical Specifications
GPU
AMD Radeon RX 9070 XT Graphics Card
AMD RDNA 4 Architecture
Engine Clock
Boost Clock: Up to 2970 MHz
Game Clock: Up to 2400 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors: 4096
Compute Units: 64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
Infinity Cache: 64MB
Ray Accelerators: 64
AI Accelerator: 128
Memory Size/Bus: 16GB/256 bit GDDR6
Memory Clock: 20 Gbps Effective
Displays: Maximum 4 Displays
Resolution: HDMI: 7680×4320
DisplayPort: 2.1a: 7680×4320
Interface: PCI-Express 5.0 x16
Output
2x HDMI
2x DisplayPort 2.1a
BIOS Support: UEFI
Game Index: 4K
Sapphire Features
Honeywell PTM7950 Thermal Interface Material (TIM)
AeroCurve Fan Blade
Free Flow
FrameDefense
Integrated Cooling Module

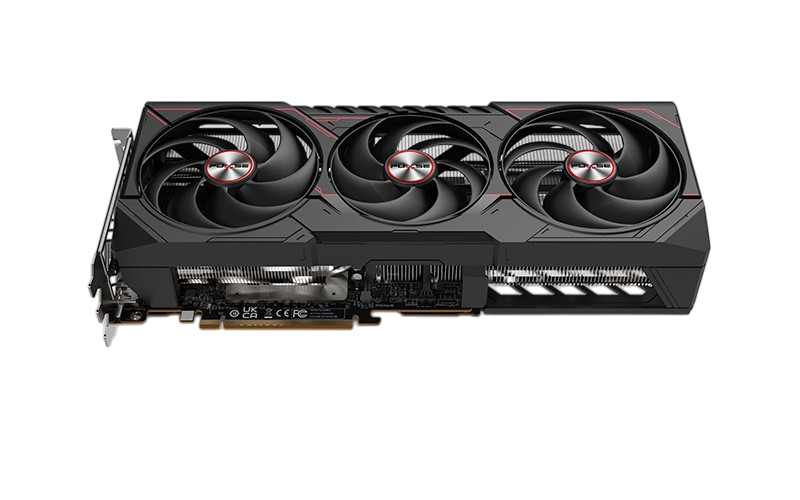

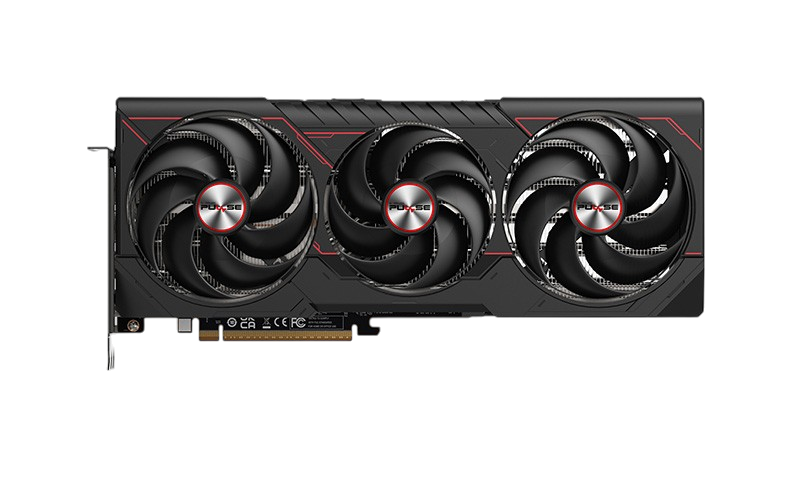

Tri-X Cooling Technology
High TG Copper PCB
Optimized Composite Heatpipes

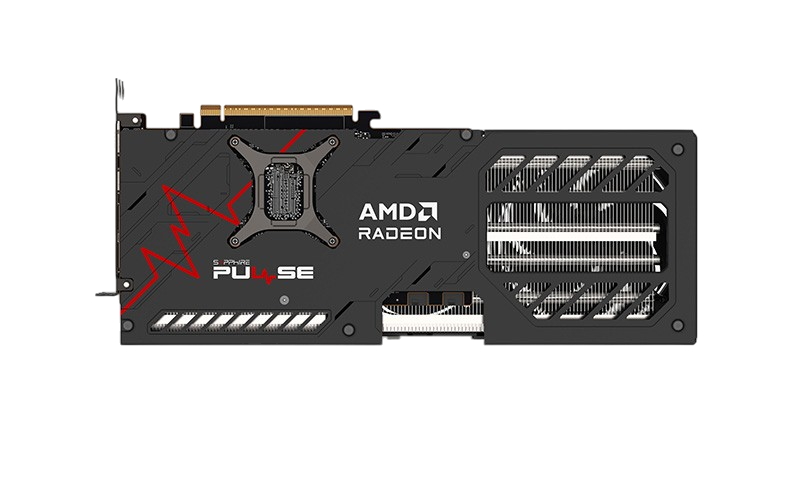

Metal Backplate
Two-Ball Bearing Fans
14-Phase Digital Power Design
Fuse Protection
Intelligent Fan Control
Precision Fan Control
TriXX Supported
TriXX Boost
Accessories Bundled: L-Shape Support Bracket
AMD Features
AMD RDNA 4 Architecture
64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
AMD HYPR-RX with AFMF 2
AMD FidelityFX Super Resolution 4 with AI Upscaling
DisplayPort 2.1a
AMD Radiance Display Engine
AMD Fluid Motion Frames 2 technology
AMD Radeon Anti-Lag 2 technology
AV1 Encode/Decode
AMD FidelityFX technologies
Microsoft DirectX 12 Ultimate
AMD Noise Suppression
AMD Freesync technology
16 GB of GDDR6 on 256-bit Memory Bus
AMD smart technologies
AMD Software: Adrenalin Edition application
Cooler Type
Tri-X Cooling
AeroCurve Fan Blade
Free Flow
Integrated Cooling Module
High TG Copper PCB
Optimized Composite Heatpipes
Two-Ball Bearing
Form Factor: 3 slot, ATX
Dimension: 320(L)X 120.25(W)X 61.6 (H)mm
Power Consumption: 304W Typical Board Power
OS: Linux, Windows 10, and Windows 11. 64-bit operating system required
System RequirementMinimum 750 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
