Description
Specifications
CPU
CPU Model: AMD Ryzen V1500B
CPU Quantity: 1
CPU Cores: 4
CPU Threads: 8
CPU Architecture: 64-bit
CPU Frequency: 2.2 GHz
Hardware Encryption Engine: Yes
Memory
System Memory: 4 GB DDR4 non-ECC SODIMM
Pre-installed Memory Module: 4 GB (4 GB × 1)
Total Memory Slots: 2
Maximum Memory Capacity: 32 GB (16 GB × 2)
Storage

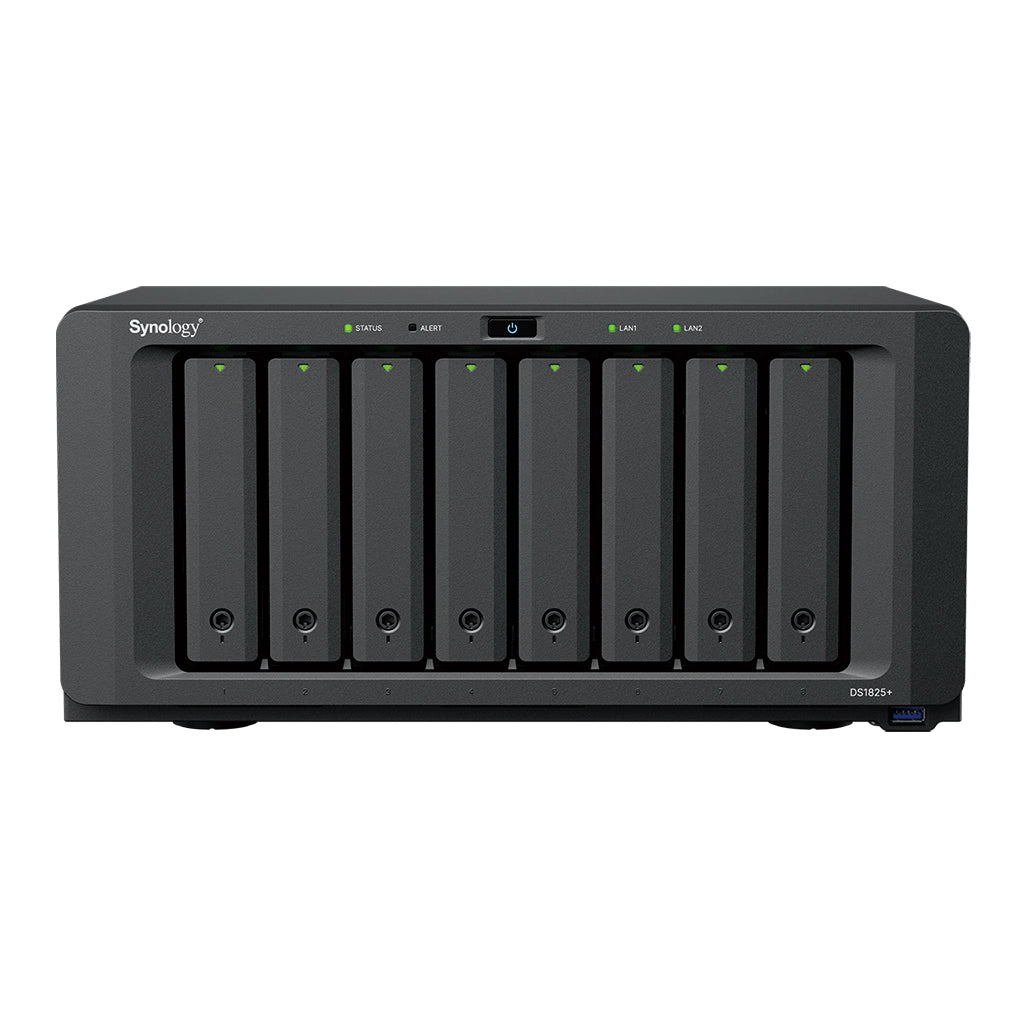

Drive Bays: 8 × 3.5" SATA HDD or 2.5" SATA SSD
M.2 Drive Slots: 2 × M.2 2280 NVMe SSD
Maximum Drive Bays with Expansion Unit: 18 (DX525 × 2)
Hot-Swappable Drives: Supported

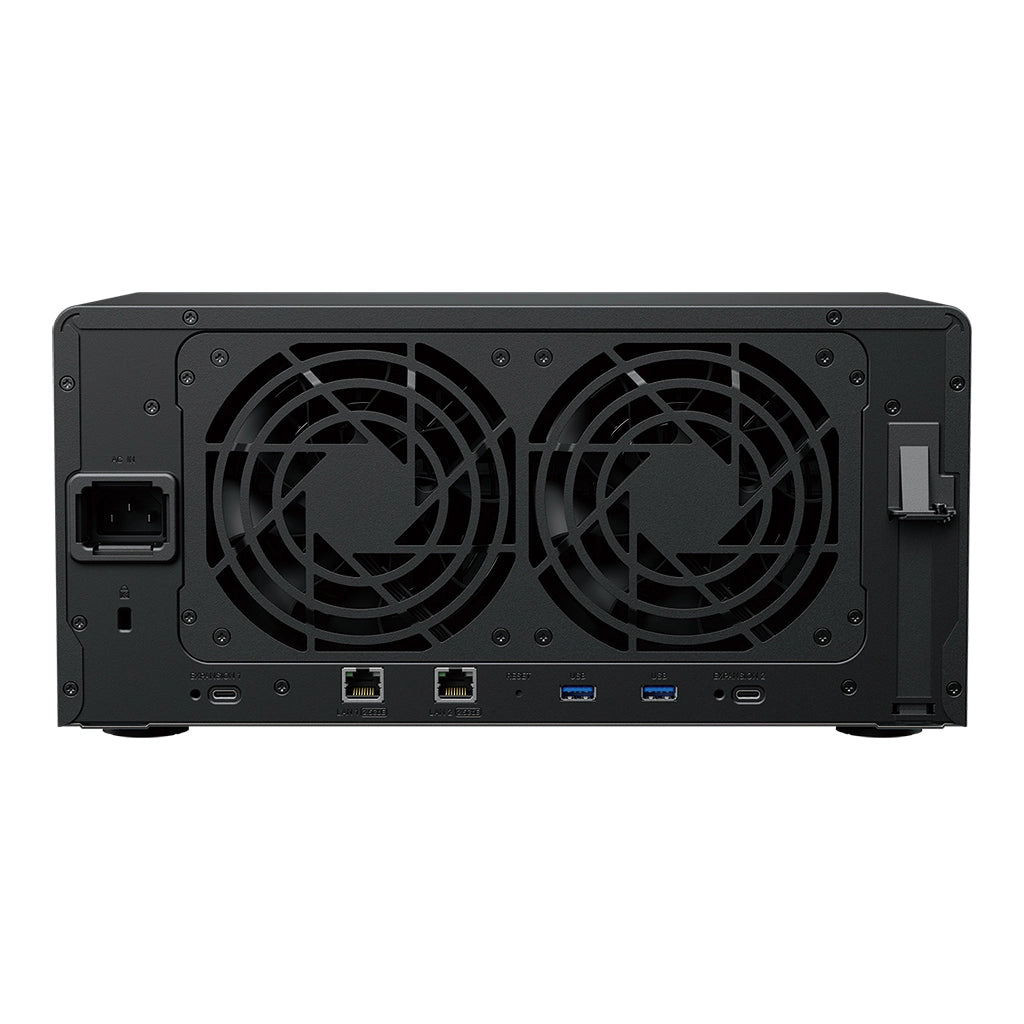

External Ports
RJ-45 2.5GbE LAN Ports: 2
USB 3.2 Gen 1 Ports: 3
Expansion Ports: 2
Expansion Port Type: USB Type-C
PCIe
PCIe Expansion: 1 × Gen3 x8 slot (x4 link)
Appearance
Dimensions (H × W × D): 166 × 343 × 243 mm
Weight: 6 kg
System Features
System Fans: 2 × 120 mm × 120 mm
Fan Speed Modes: Full-Speed Mode, Cool Mode, Quiet Mode
Easy Replacement System Fan: Supported
Adjustable Front LED Brightness: Supported
Power Recovery: Supported
Noise Level: 23.8 dB(A)
Scheduled Power On/Off: Supported
Wake on LAN/WAN: Supported
Power Specifications
Power Supply Unit: 250 watts
AC Input Voltage: 100V to 240V AC
Power Frequency: 50/60 Hz, Single Phase
Power Consumption (Access): 60.1 W
Power Consumption (HDD Hibernation): 18.34 W
Heat Dissipation (Access): 204.94 BTU/hr
Heat Dissipation (HDD Hibernation): 62.54 BTU/hr
Temperature and Humidity
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 60°C (-5°F to 140°F)
Operating Humidity: 8% to 80% RH
Storage Humidity: 5% to 95% RH
Certifications
FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS
Packaging Contents
Main Unit: × 1
Accessory Pack: × 1
AC Power Cord: × 1
RJ-45 LAN Cable: × 2
