Description
Technical Specifications
HARDWARE FEATURES
Interface: USB 2.0
Dimensions ( W x D x H ) 19.2*15.7*7.4mm
Antenna: Omni Directional
WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n/ax 2.4 GHz, IEEE 802.11a/n/ac/ax 5 GHz
Frequency
5GHz
2.4GHz
Signal Rate
5GHz
11ax: Up to 600Mbps(dynamic)
11ac: Up to 433Mbps(dynamic)
11n: Up to 150Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11ax: Up to 287Mbps(dynamic)
11n: Up to 200Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity
5GHZ
11a6M?-94dBm
11ax HE80 MCS11-59dBm
11ax HE80 MCS0-87dBm
2GHZ
11g6M-95dBm
11ax HE40 MCS11-65dBm
11ax HE40 MCS0-93dBm
Wireless Modes: Infrastructure Mode
Wireless Security: WEP, WPA/WPA2/WPA3, WPA-PSK/ WPA2-PSK
Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM,
256-QAM, 1024-QAM
OTHERS
Certification: CE, FCC, RoHS

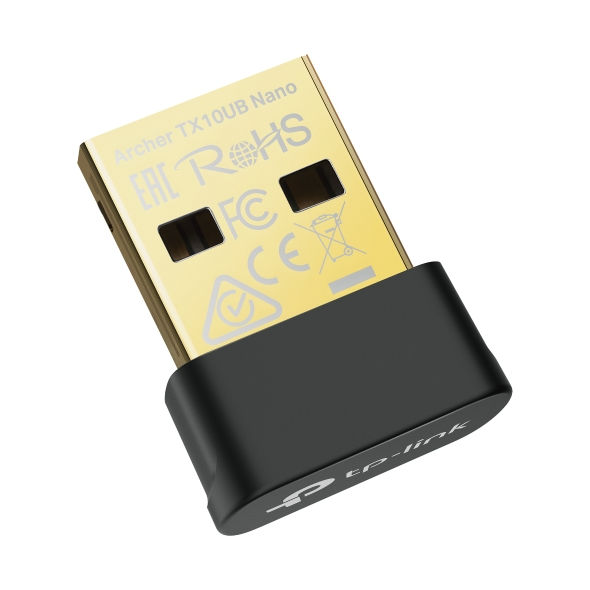

Package Content: AX900 Nano Wi-Fi 6 Bluetooth 5.3 USB Adapter Archer TX10UB Nano
Quick Installation Guide
System Requirements: Windows 11/10
Environment: Operating Temperature: 0~40 (32 ~104)
Operating Humidity: 10%~90% non-condensing
