Description
Specifications
CAMERA
Image Sensor
1/2.8? Progressive Scan CMOS Starlight Sensor
Lens
Fixed Lens
Focal Length: 2.8 mm
Aperture: F1.6
Field of View: 125.5° (Diagonal), 107.8° (Horizontal), 57.8° (Vertical)
PT Lens
Focal Length: 6.0 mm
Aperture: F1.6
Field of View: 67.1° (Diagonal), 57.8° (Horizontal), 30.1° (Vertical)
Night Vision
850 nm IR LED (40 ft / 12 m), Color Night Vision
Day/Night Switch
IR-Cut Filter with Auto-Switching
Lighting
/
Hub Compatibility
/
Interface & Button
1× RESET Button
1× microSD Card Slot (Up to 512 GB)
VIDEO & AUDIO
Maximum Resolution
2304 × 1296 px
Frame Rate
15 fps
Digital Zoom
10.8×
Video Compression
H.264
Live View
Yes
Image Enhancement
3DNR
WDR
Audio Input & Output
Built-in Microphone and Speaker
Audio Communication
Two-Way Audio with Noise Cancellation
Siren Volume
99 dB (Level measured at 4-inch/10-cm distance)
STORAGE
Local Storage
microSD Card Slot on Camera (Up to 512 GB)
Cloud Storage
Tapo Care Cloud Storage Services (Subscription required)
DETECTION AND NOTIFICATIONS
AI Detection
Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Line-Crossing Detection
Baby Cry Detection
Glass Break Detection
Dog Barks Detection
Cat Meows Detection
Camera Tampering
Activity Zones
Yes
*Works with Motion Detection, Person Detection, Pet Detection, and Vehicle Detection
Output Notification
System Notification
System Notification with Snapshot (Tapo Care Services)
NETWORK
Network Connectivity
Connect via Wi-Fi
Wireless Connectivity
IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Protocol
TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
Max. Distance Between Hub and Camera/Doorbell
/
Ethernet Port
/
RTSP
Yes
ONVIF
Yes
Transmission Rate
11b: 11 Mbps
11g: 54 Mbps
11n: 72.2 Mbps
SECURITY
Security
On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
PWPA/WPA2-PSK
POWER
Power Source
5 V DC Power Adapter
Input Voltage
100-240 V, 50/60 Hz, 0.3A
Output Voltage
5.0 V, 2.0 A (Type-C Power)
Power Cord Length
3 m
Typical Power Consumption
3.0W
Maximum Power Consumption
9.0 W
GENERAL
Smart Integration
Google Assistant, Amazon Alexa, Samsung SmartThings
Weather Resistance
IP65
Mounting Options
Tabletop
Wall-Mounted
Ceiling-Mounted
Pole-Mounted
Operating Temperature
-20 ºC ~ 50 ºC (-4 °F ~ 122 °F)
Storage Temperature
-40 ºC ~ 60 ºC (-40 °F ~ 140 °F)
Operating Humidity
10% ~ 90% RH, Non-condensing
Storage Humidity
0 ~ 90% RH, Non-condensing
Weight
9.77 oz / 277 g
Package Content

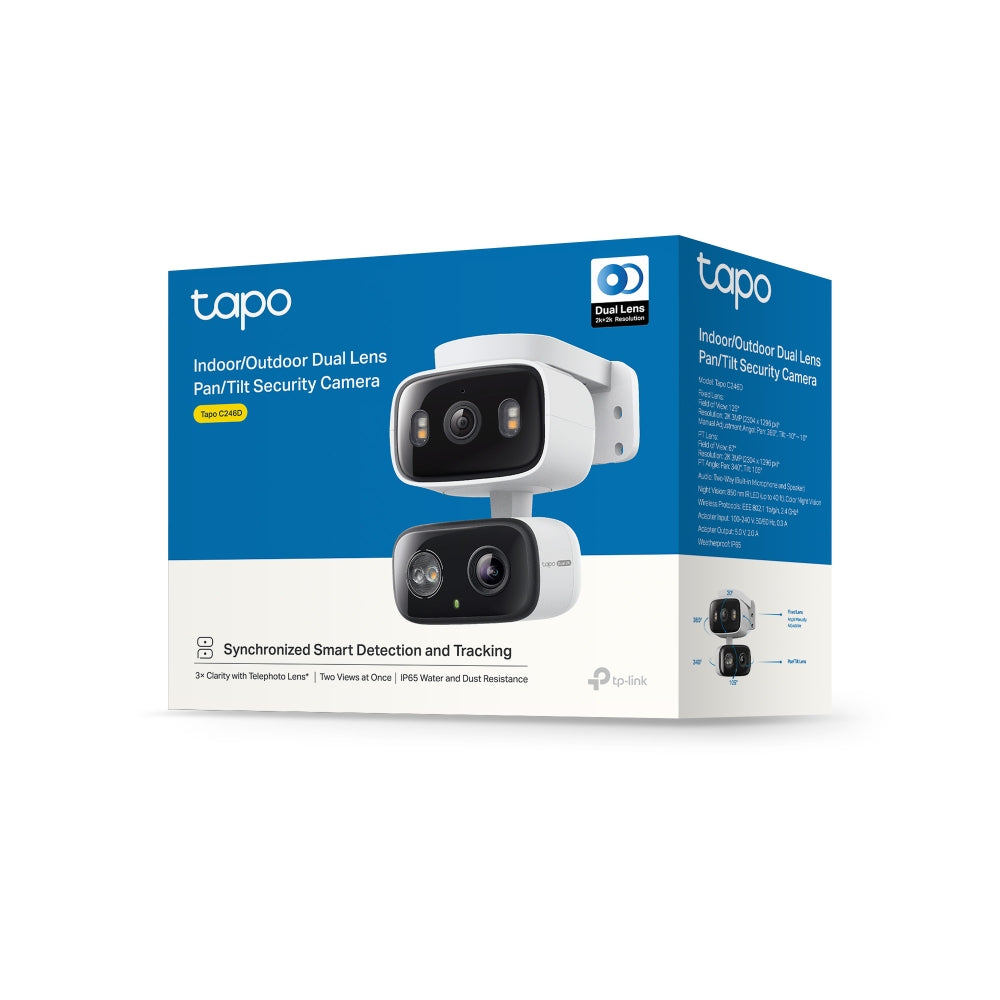

Tapo C246D Camera × 1
Mounting Bracket × 1
Mounting Template Sticker × 1
Mounting Anchors × 4
Mounting Screws × 4
Power Adapter × 1
3 m USB Adapter Cable × 1
Quick Start Guide
Dimensions (W X D X H)
3.07 × 3.02 × 4.20 in (78 × 76.83 × 106.83 mm)
