Description
Technical Specification

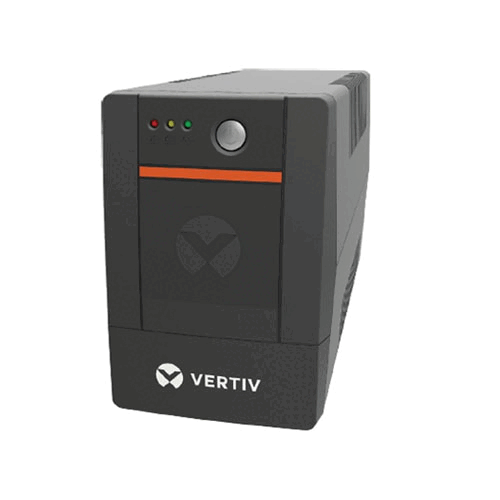

Model Number: PSA650-PH
Capacity: (VA/W) 650/360
Physical
Unit Weight, kg. (lb.) 3.8 (8.4)
Unit Dimensions, W × D × H mm (in.) 101 × 280 × 142 (4.0 × 11.0 × 5.6)
Shipping Weight, kg. (lb.) 4.3 (9.5)
Shipping Dimension, W × D × H mm (in.) 142 × 326 × 213 (5.6 × 12.8 × 8.4)
Input
Voltage: 230VAC
Input Voltage Range: 170?280VAC, Single Phase
Input Frequency: 50/60 Hz (Auto Sensing)
Online Frequency Range: (50Hz/60Hz) 45~55Hz ± 1Hz/ 55~65Hz ± 1Hz
Output
Output Voltage (Utility Power Normal): 230VAC, Single Phase
Output Voltage (Battery Operation): 230 ± 10%
Transfer Time Typical: 4-8ms, 10ms max
On-Battery Wave Form: Stepped Sinewave
Output Frequency Battery Mode:50Hz / 60Hz ± 1Hz
Battery
Battery Type, VDC × Ah × Quantity: 12V × 7 Ah × 1
Typical Recharge Time: 6~8 Hours to 90%
Operating Environment
Operating Temperature,°C: 0 to 40
Storage Temperature, °C: -20 to 50
Operating/Storage Relative Humidity: 0~90%, Non-condensing
Noise Level: Less than 45dB
Protection
Full Protection: Surge, Short Circuit, Overload, Overcharge,
and Over Discharge Protection
Indicators
LED Display (LED version): AC Mode (green), Battery Mode (yellow), Fault (red)
Alarm
Battery Mode: Sounding every 10 seconds
Low Battery: Sounding every 1 second
Overload (at Normal Mode): Sounding every 0.5 second
Overload (at Battery Mode): UPS shuts down immediately
Fault: Continuously sounding
Runtime Table
Load (%) Load (W): Runtime Approx. (minutes)
10% 36 W: 48
20% 72 W: 20
30% 108 W: 10
50% 180 W: 3
