Description
Specifications
Model: ViewSonic WPD-900

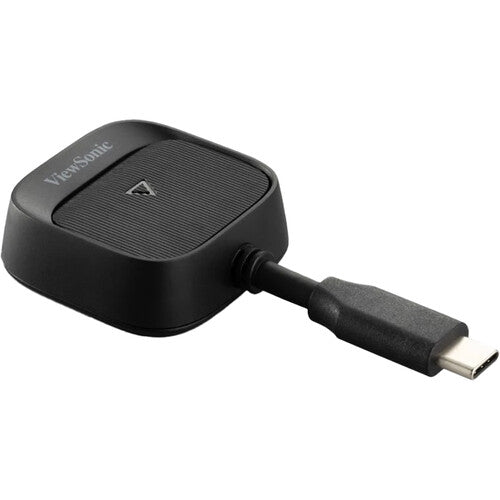

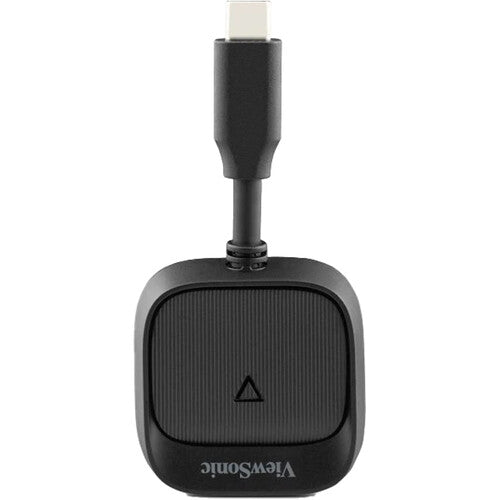

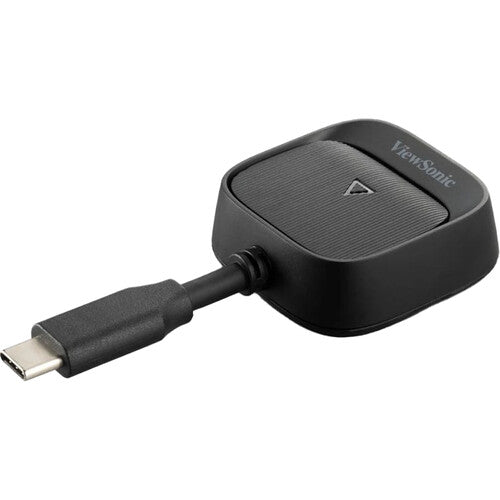

Transmitter (TX)
Main Chip: AM8360D
Wi-Fi: AM9421, 5GHz 1T1R
HDCP Support: HDCP 1.4
Video Support: 1080p60
Audio Support: 2 channel, PCM
USB Type-C: 2 (Video × 1, Power Input Support up to 60W PD × 1)
Pair Button: 1
Power Input: 5V/1A
Power Consumption: 3W
Dimensions: 3.4" × 1.7" × 0.6"
Weight: 0.05 lbs

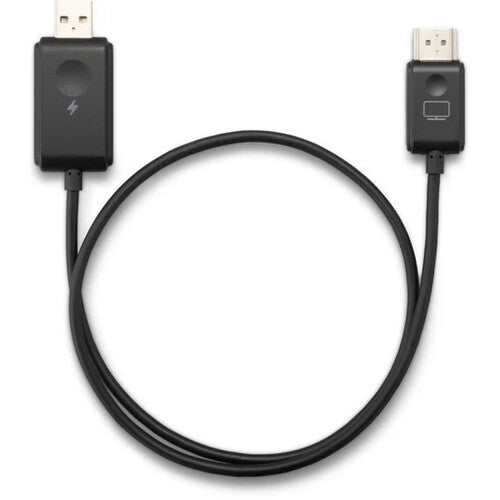

Receiver (RX)
Main Chip: AM8268H
Wi-Fi: AM9421, 5GHz 1T1R
HDCP Support: HDCP 1.4
Video Support: Up to 1080p 60Hz
Audio Support: 2 channel, PCM
HDMI: 1
USB-A: 1 (Only for Power Input)
Pair Button: 1 (Pin hole)
Power Input: 5V/0.5A
Power Consumption: 1.5W
Dimensions: 27.8" × 1" × 0.4"
Weight: 0.06 lbs
Dimensions
Packaging: 5.6" × 3.5" × 0.14"
Physical (TX): 6.7" × 1.6" × 0.6"
Physical (RX): 26.7" × 0.7" × 0.2"
Weight
Net: 0.1 lbs
Gross: 0.2 lbs
Package Contents
Wireless dongle including RX (Receiver) and TX (Transmitter)
